Clinic 32" Touch Screen Bottle reverse vending machine with compressor IP54 Waterproof
Brief Introduction :
RVM-3111 Smart Reverse Vending Machine (RVM) is aim at the market of non-deposit. it accept plastic bottle, metal can. equipped compactor module to improve the capacity of storage and container segregated storaged.
32" touch screen in interactive operate software,play the demo, attract traffic, promote brand, increase income.user start the recycle by APP or scan the QR code. the printing module support print coupon,receipts.
We can customized operate and reward solution.
Simple and atmospheric design, suitable for wrapping advertisement and customized branding with large space for poster.
Parameters:
| Model# | RVM-3111 | Description: | Smart RVM |
| Size (mm) | 1950H*1100L*750D | 2 container
3 container | Plastic bottle, metal can,
Plastic bottle, metal can, glass bottle |
| Compactor | yes | Segregated | yes |
Special
features
| 1. UV sterilization
2. with 4 protections
3. Over flow alarms
4. Abnormal alarms | Storage capacity: | 800pcs plastic bottle
500pcs metal cans |
| Voltage/ Frequency | AC110V, 230v, 50/60HZ
0.5A /10A | Output: | Max: 350W
Idle status: 150w |
| recognition system | Bar code matching
Configuration scanner
Weight sensor | Reward | Coupon
Donation
Digital deposit
Redeem gift |
| Operated | APP, QR code | Touch screen | 32” |
| Process speed | 40pcs | Working Temp
Humidity
Noise | -10℃ to +45℃
<95%,
<60db |
| Vend solution | Spring rods | Storage capacity | 3-4 SKU,20-80pcs |
| Suitable for | Semi-Outdoor | Network Solution | LAN,GPRS, 3G, 4G |
| Operate software | a. Standard in English
b. Customized
c. Manual operate | Remote control software | a. Standard
b. Customized
c. Standalone |
| G.W: | 220KGS | Certification | CE, ROHS |
Quick Detail:
1. User Screen: 32inch
2. Material types: plastic PET bottle, metal can
3. with compactor
4. sorte storage
5. Productivity: 40 pcs per min
6. Storage Capacity up to 800pcs of plastic bottle, 500pcs metal can (compacted), 100pcs glass bottle
7. Reward systems: Digital Deposit, Coupon, Donation, Redeem gift
8. Automation: Barcode, material and weight sensors
9. Container size:150ml - Max.2.5litres
10. Over flow alarms
11. anti-clamping hand protection (door)
12. Non-conforming image identification Reject
13. No-conforming weight identification Reject.
14. 4 protections-OVP,SCP, RVP, RCD
15. IP54 waterproof
16. Support for multiple reward systems
17. Support software integarted

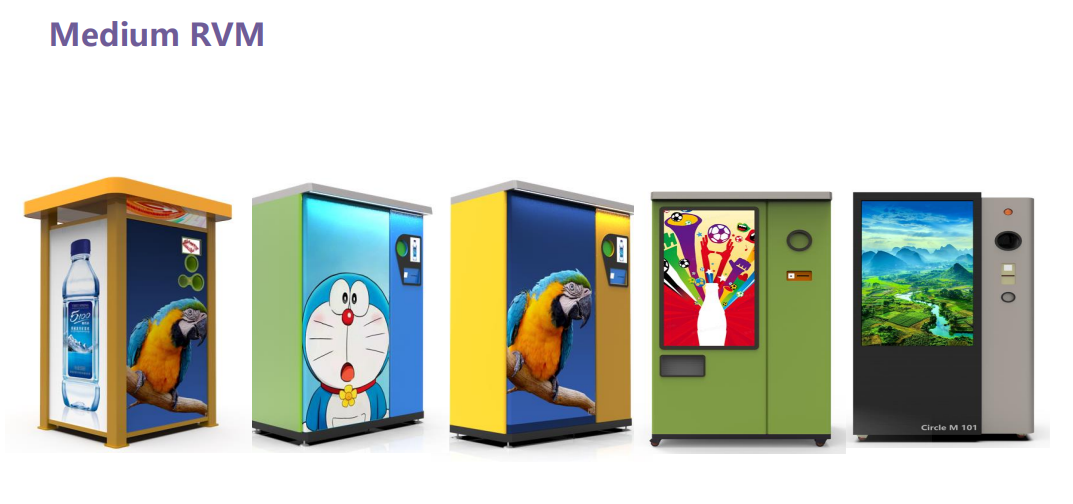

More Designs
Management Platform
a . Introduction and samples
b. Management Center
